02 Drawings

Drawing sheets

A selection of lease plans and floor plans prepared by the practice. Select a sheet to view it at full size.

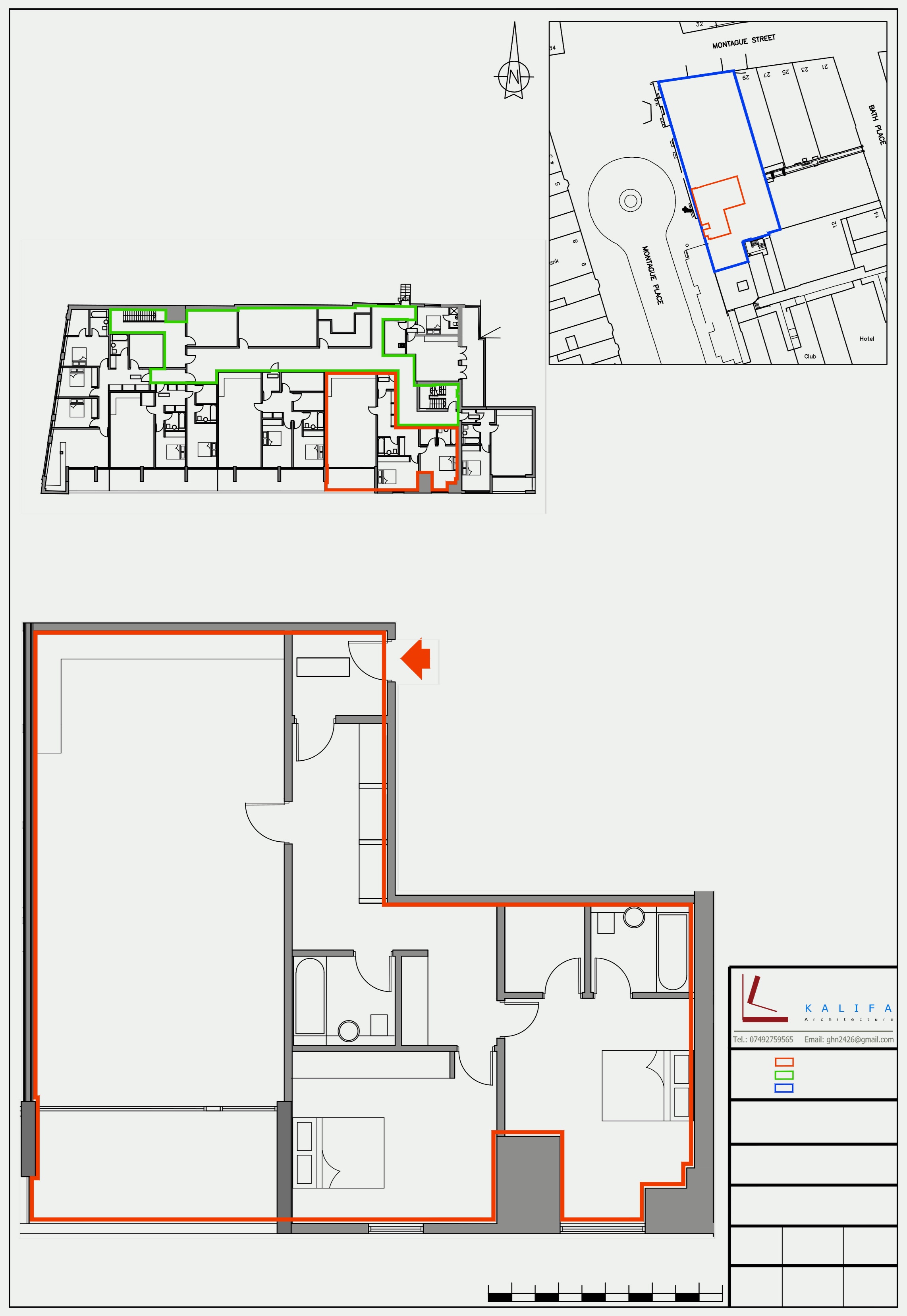

Lease plan of an L-shaped flat with the demise outlined in red, a block key plan and a site location plan
Sheet CLease plan, L-shaped flat. Demise in red, block key plan and site location plan.

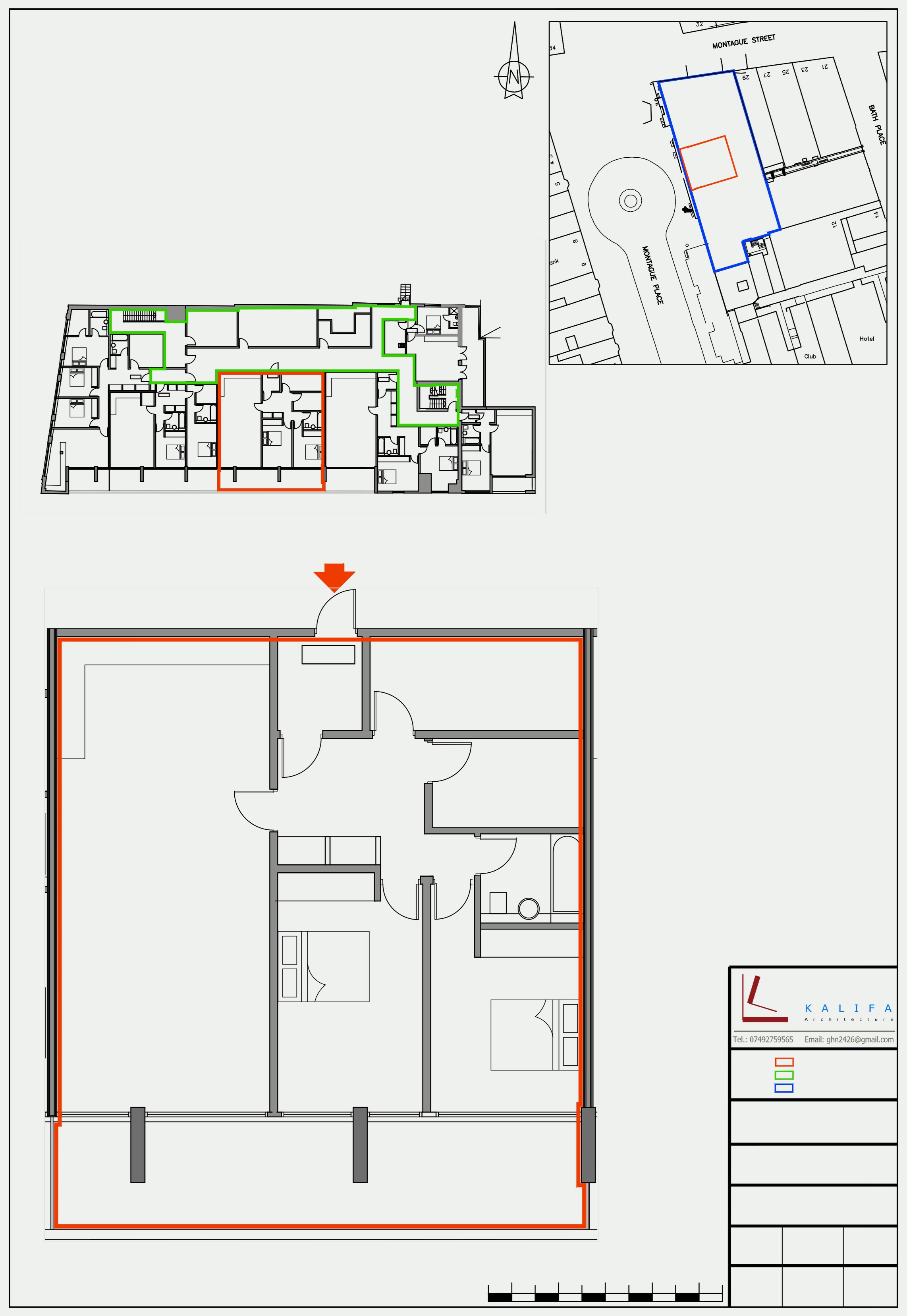

Lease plan of a flat, with the demise outlined in red, a block key plan and a site location plan
Sheet BLease plan of a flat on the same block, with north point and scale bar.

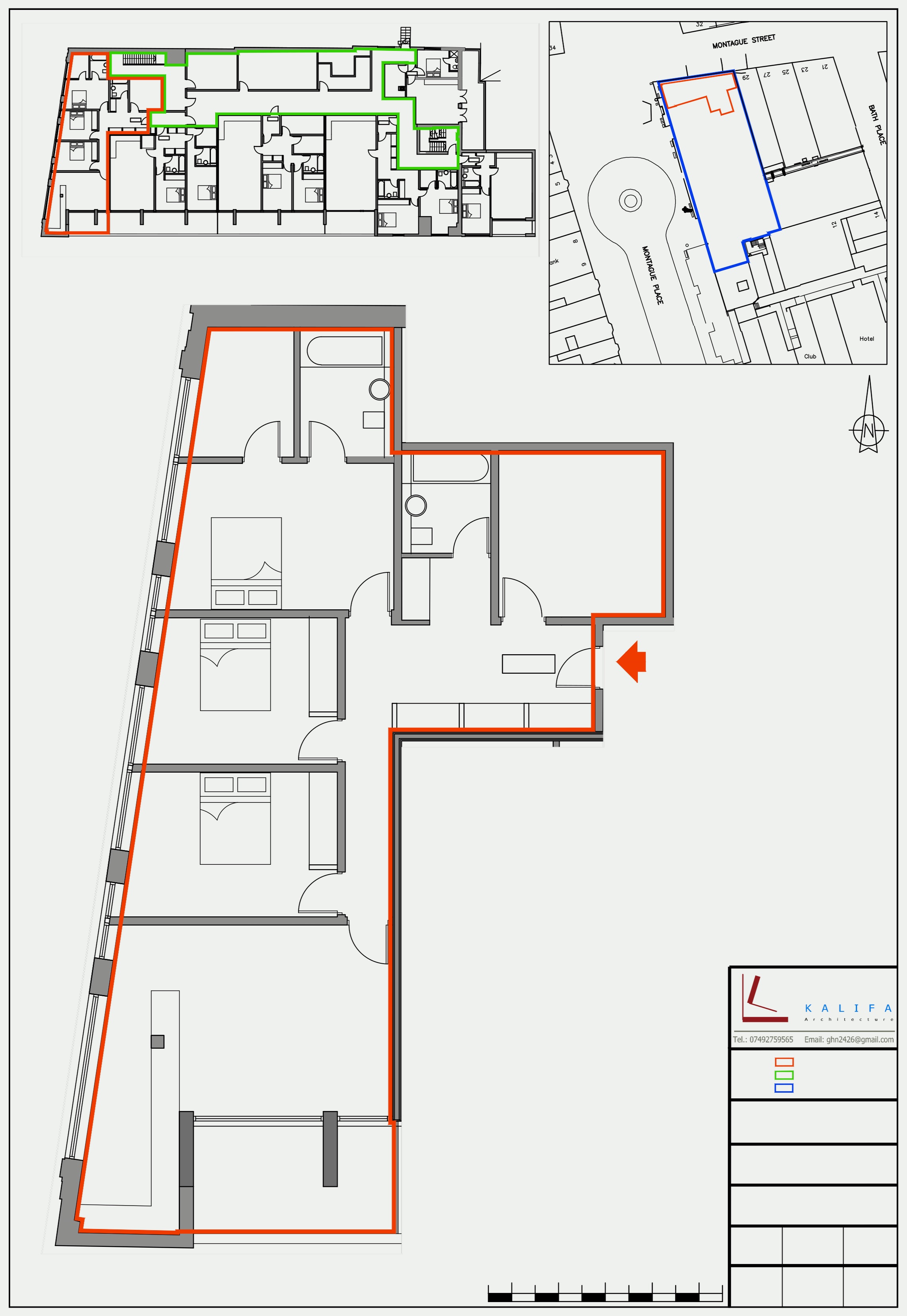

Lease plan of a flat with an angled facade, the demise outlined in red, block key plan and site location plan
Sheet ALease plan, flat with angled facade. Demise in red, block key and site location plan.

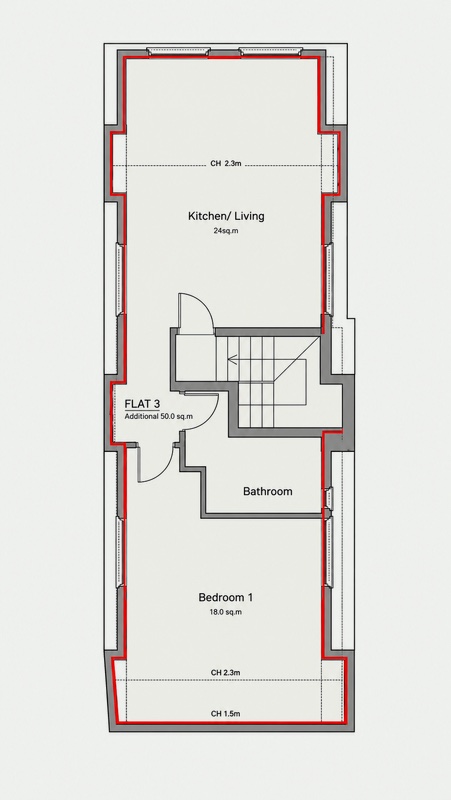

Floor plan of Flat 3 showing kitchen and living room, bathroom and bedroom with ceiling heights and floor areas
Flat 3Floor plan with ceiling heights and areas.

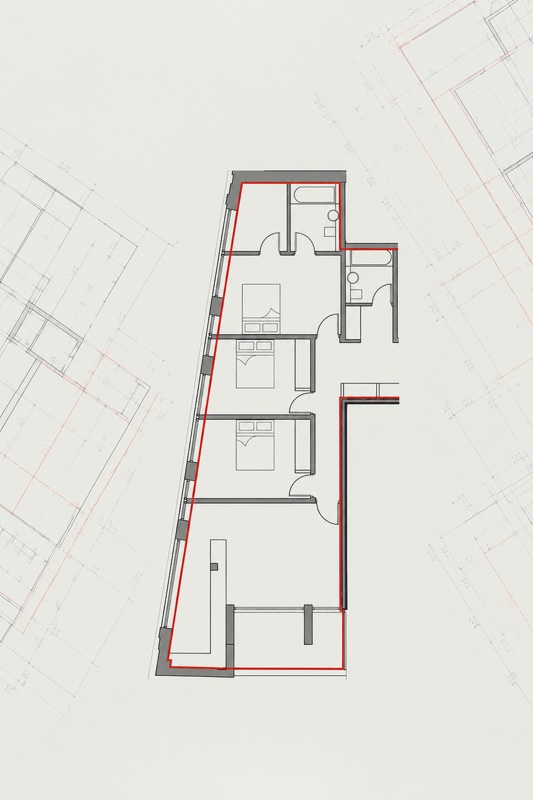

Apartment floor plan with three bedrooms and the boundary outlined in red
Apartment floor plan, boundary in red.

Need drawings like these?

Request a lease plan Discuss your project
